Lemo Coaxial Connector ERA.0E.250.CLL

Lemo alternative 0E serials 50 Ohm Coaxial cable connectors ERA.0E.250.CLL

• Shell Style/Model : ERA*: Fixed receptacle, nut fixing
• Keying:Circular (can rotate), plug has male contact(s)
• Housing Materia: Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
• Configuration : 0E.250 : 1 Coax (50 Ohm)
• Rated Current:6 Amps
• Contact Type: Coaxial 50 Ohm (Solder)
• Max. Matings: 1000
• Contact Dia.: 0.9 mm (0.035in)
• Bucket Dia.: 1 mm (0.039in)
• Vtest: 3000 V (AC), 4200 V (DC)
• Impedance: 50 Ohm
• VSWR: 1.02 + 0.25 * f/GHz
• Cable type: RG 178 B/U, RG 196 A/U, RG 188 A/U, RG 316 B/U, RG 174 A/U, HF-2114, RG 122 /U

• Medical
• Defense Security
• Instrumentation
• Transportation
• Industry
• Energy
• Broadcast
• Audio/video

Our connector mainly have 2 waterproof IP rating: IP50 and IP68, if you need IP50 products, you can choose Lemo B serials, if you higher IP68, Lemo K serials and S serials should be your choice.

For the IP rating, please let me explain for you as followings:

IP50:

• Dust-prrof: Completely prevent foreign invasion, although not completely prevent the intrusion of dust, but the amount of dust intrusion will not affect the normal operation of electrical appliances
• Waterproof: No special protection against water or moisture

IP68:

• Dust-prrof: Completely prevent foreign objects and dust intrusion
• Waterproof: Can be completely immersed in the water structure, the experimental conditions determined by the producers and users

• 100% compatible lemo connector,
• Help you save at least 30% cost
• Cable assembly offer,help you save production time.

lemo audio connector

lemo power connector

50Ohm Lemo Coaxial Connector

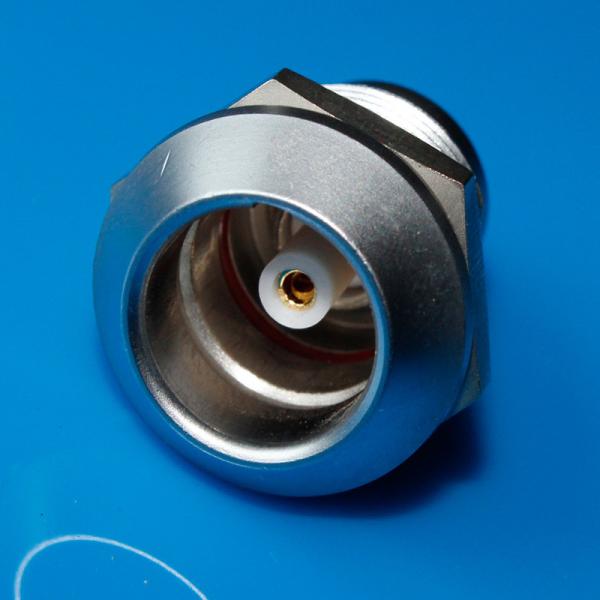

Lemo Coaxial Connector ERA.0E.250.CLL Images
