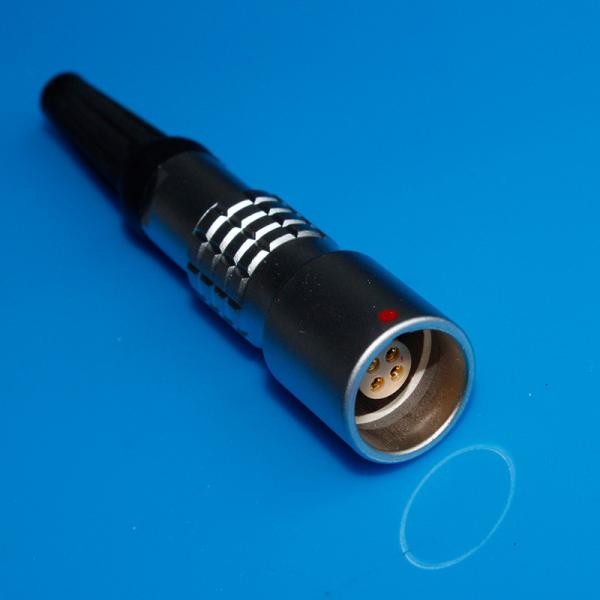

4pin PHG Female Connector Lemo 1K Size

Product Categories

Ebuddy Technology Co.,Limited

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 4pin PHG Female Connector Lemo 1K Size
Brand: Ebuddy
Price: 1 USD

Brand Name : Ebuddy

Model Number : PHG.1K.304.CLLC

Certification : CE.ROHS

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : Western Union, T/T，Paypal

Supply Ability : 10000pcs per month

Packaging Details : pp pag

Contact Type : Female solder

Keying : 1 key (alpha=0)

Configuration : 0K.306 : 6 Low Voltage

Rated Current : 2.5 Amps

Max. Matings : 5000

IP Rating : IP68

Contact Now

4pin PHG female connector Lemo 1K size waterproof circular connectors cable welding female plug

Description:

Termination type : Female solder
IP rating: IP68
Matching parts: FGG.1K.304.CLAC30
Shell Style/Model:PH*: Free receptacle, cable collet
Keying: 1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Housing Material: Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
Configuration:1K.304 : 4 Low Voltage
Contact Type: Solder
Max. Matings: 5000
Contact Dia.: 0.9 mm (0.035in)
Bucket Dia.: 0.8 mm (0.031in)
Max. Solid Conductor: 0.34 mm^2 (AWG 22)
Max. Stranded Conductor: 0.34 mm^2 (AWG 22)
R (max): 4.8 mOhm
Vtest (contact-shell): 1450 V (AC), 2050 V (DC)
Vtest (contact-contact): 1350 V (AC), 1910 V (DC)

Application :

1K Cable collet size

Size and Drawing

4pin PHG Female Connector Lemo 1K Size
